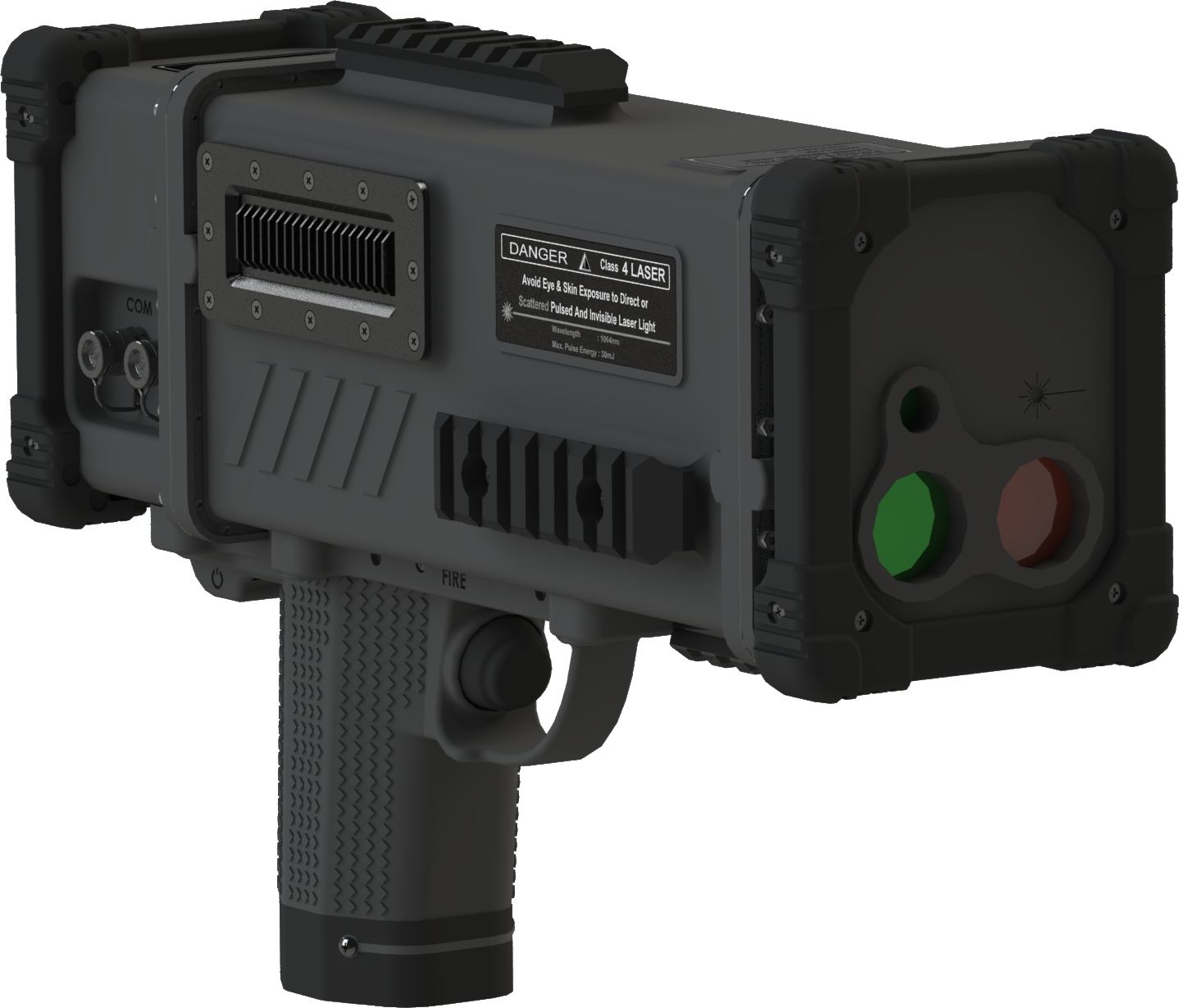

PECKER™ COMBAT-1000
Handheld Laser Target Designator
PECKER™ COMBAT 1000 is a portable laser target designator developed for field applications.
It combines Laser technology with integrated controls, communication interfaces and auxiliary sensing capabilities.
Technical Specifications
Laser Performance
Laser Wavelength: 1064 nm
Laser Output Energy: 20–24 mJ
Pulse Width: 15 ± 2 ns
Beam Divergence: <600 µrad
Pulse Repetition Frequency: Up to 22 Hz
Laser Safety Classification: Class 4
Features & Operating Conditions
Designation Codes: NATO STANAG 3733 Band I–II and user-defined codes
Laser Rangefinder: 3 km, eye-safe
Communication: RS-422, USB, Bluetooth
Control: Integrated display, keypad and remote control
Operating Temperature: −15 °C to +49 °C
Physical Specifications
Weight: Less than 1.90 kg
Dimensions (W × L × H): 86 × 286 × 192 mm
Power Supply: 24 V DC battery pack
Auxiliary Sensors: Magnetic compass, 3-axis gyroscope
Cooling: Natural convection
